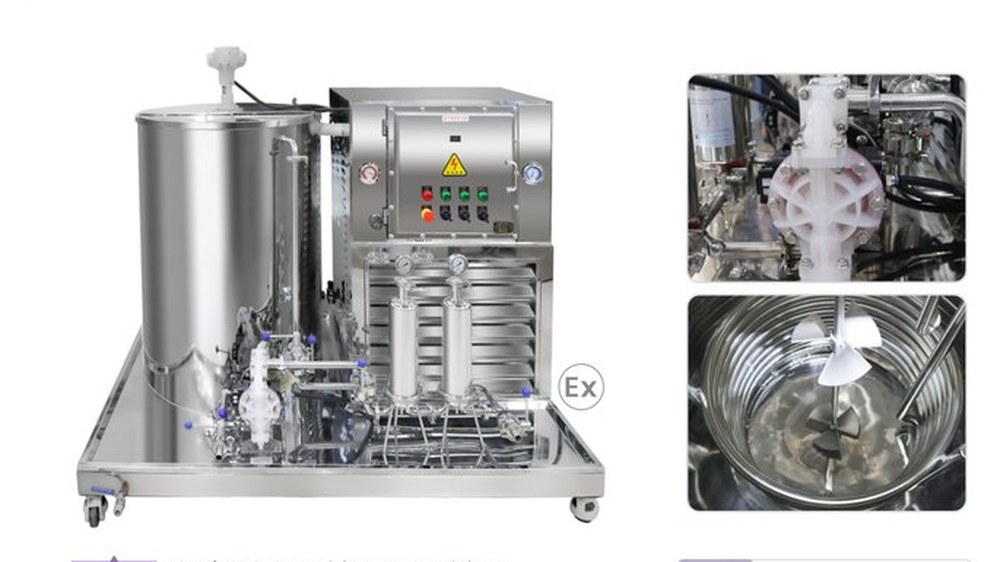

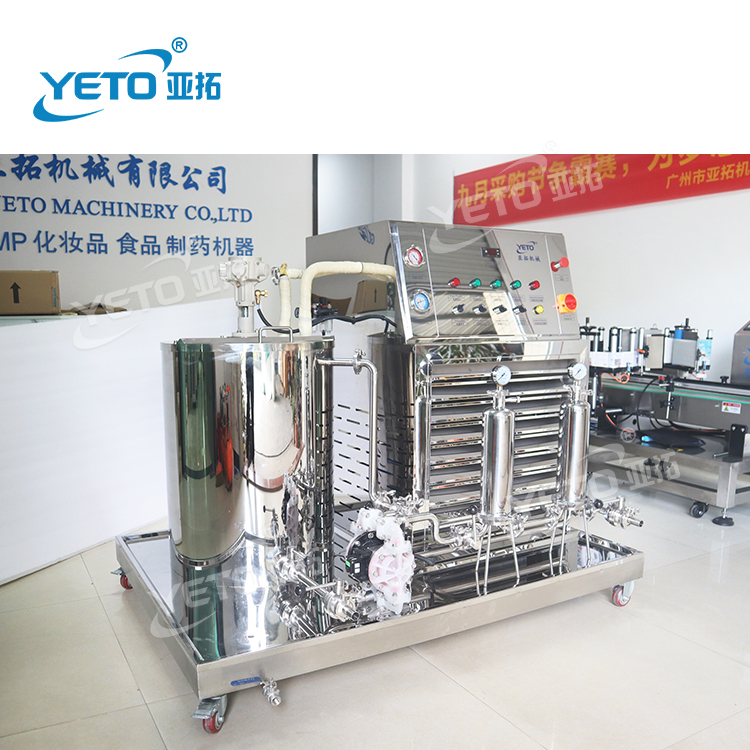

Perfume Mixing, Freezing & Filtration Machine

Product Overview & Applications

The YPM Perfume Mixing and Freezing Filter Machine by Yeto Machinery is an advanced, industry-grade solution meticulously engineered for the cosmetics, fragrance, and personal care sectors. Operating within a precise low-temperature range of -5°C to -15°C, this integrated machine is the definitive equipment choice for clarifying, blending, and purifying high-end perfumes, fine fragrances, aromatherapies, and makeup removers (cleansing water).

Advanced Cooling Performance

At the core of the machine's thermal management system is a heavy-duty compressor sourced from the world-renowned manufacturer Maneurop (France). This premium refrigeration system delivers exceptional reliability, high torque capacity, and energy efficiency. Designed for industrial applications, the Maneurop compressor drives an ultra-fast chilling cycle capable of lowering the liquid temperature within the tank at an average rate of 1°C every two minutes. This ultra-responsive cooling capability drastically minimizes batch processing times, ensuring maximum production throughput.

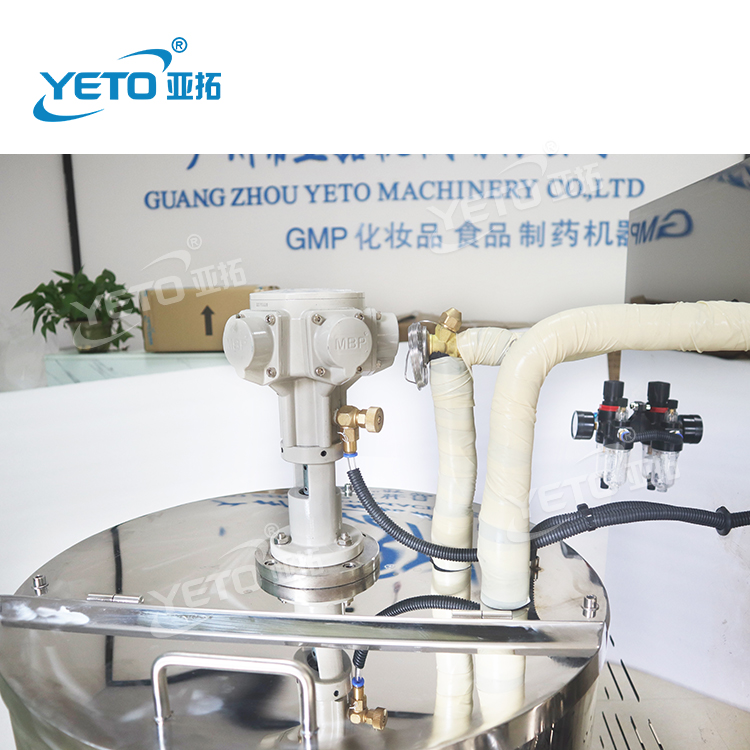

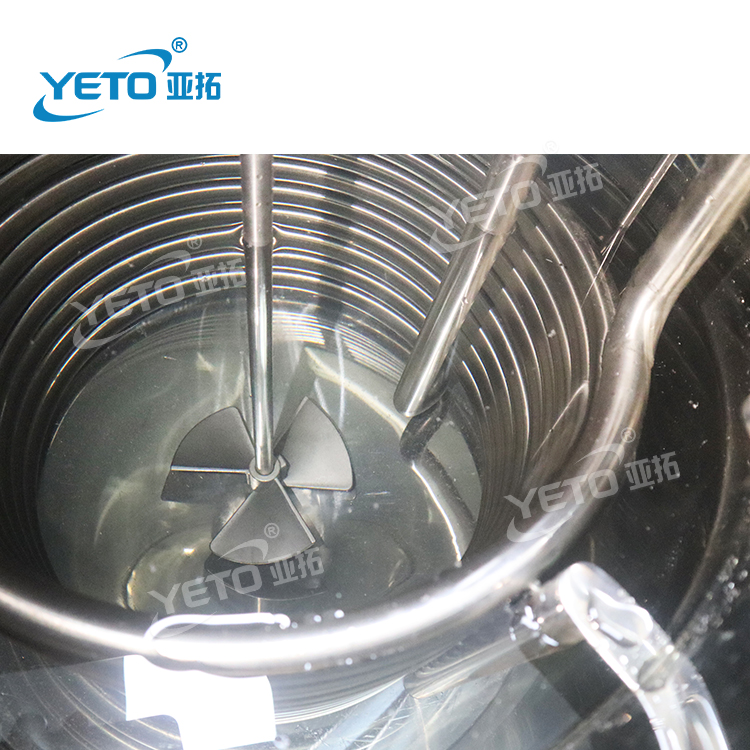

Pneumatic Agitation & High-Shear Dispersion

To guarantee safety and compliance in environments involving volatile, alcohol-based materials, the YPM utilizes a fully pneumatic control architecture. The mixing assembly features a premium MBP pneumatic motor, which eliminates the risks of electrical sparks, making the entire operation natively explosion-proof. The pneumatic motor drives a high-precision, high-speed dispersion disc crafted entirely from sanitary-grade Stainless Steel 316L. This material offers superior corrosion resistance and longevity. The high-shear action of the 316L dispersion blade ensures rapid homogenization of essential oils, alcohol, and water bases.

Multi-Stage High-Precision Filtration

Clarification is achieved via a robust pressure-filtration assembly utilizing premium polypropylene (PP) micro-porous filtration films. The machine features advanced filter cartridges operating with dual-precision options of 0.22 μm and 0.1 μm. This ultra-fine microfiltration ensures the complete elimination of microscopic particles, precipitated lipids, and impurities, meeting the stringent quality criteria required for premium luxury cosmetics.

Flexible and Customizable Design

• Optimized Working Capacity: Features a safe working volume ranging from 30% to 100% of the total vessel volume, allowing operators to run smaller pilot batches or full-scale production runs without efficiency loss.

• Fully Customizable Volume: Available in a wide spectrum of configurations, from compact 30L pilot setups up to massive 5000L industrial mass-production systems to fit your specific production line requirements.
