automatic double heads production ,one person control whole machine
YETO Machinery introduces its flagship Fully Automatic Perfume Production Line, engineered for high-efficiency, end-to-end fragrance packaging. Designed with versatility, noise reduction, and precision engineering, this linear automated system delivers speeds of up to 50 bottles per minute (bpm).
This complete automated packaging line integrates bottle cleaning, vacuum filling, automatic component feeding, crimping, collar pressing, and outer cap placement into a continuous, streamlined workflow.
High Production Speed: Maximum capacity of 40–50 bottles per minute (bpm).
Broad Volume Range: Filling capacity suitable for 8 ml – 200 ml containers.
Versatile Bottle Compatibility: Adjustable custom pucks/molds accommodate various bottle shapes and sizes, including glass perfume bottles and heavy-walled plastic containers.
Integrated Acoustic Soundproofing: Enclosed automatic pump and collar feeding systems are equipped with acoustic insulation enclosures to reduce workplace operational noise.
CE & TÜV Rheinland Certified: Built to international manufacturing standards for safety and reliability.
| Process Station | Technical Details & Functions |
| 1. Air Cleaning | 4-Head Negative Ion Air Washing Station: Removes static electricity, dust, and particulate matter inside the bottle before filling. |
| 2. Liquid Filling | 8-Head Vacuum Level Filling System: Ensures consistent fill levels across all bottles regardless of small volume variations in glass thickness. |
| 3. Pump & Collar Placement | 2-Head Automatic Pump & Collar Feeder: Automatically sorts, feeds, and positions spray pumps and middle collars accurately. |
| 4. Crimping & Pressing | Automatic Crimping & Collar Pressing: Robotic gripping and pressing mechanisms secure pump valves and press middle collars firmly. |
| 5. Capping | Automatic Outer Cap Pressing: Automatically places and presses overcaps/outer caps for a finished presentation. |
Fully Automated Workflow: Reduces manual labor from bottle rinsing through final capping, ensuring high repeatability and lower operational costs.
Noise-Controlled Environment: Dedicated acoustic enclosures around the vibratory/rotary feeding units keep workplace noise levels low.
Flexible Bottle Handling: Universal adjustable molds eliminate long changeover times when switching between different glass or thick plastic bottle designs.
Vacuum Level Precision: Vacuum filling prevents overflow and maintains a uniform liquid line height on the retail shelf.
Fine Fragrances & Perfumes
Colognes & Eau de Toilette (EDT)
Body Sprays & Essential Oil Solutions
Certifications: CE Certified, TÜV Rheinland Inspected
Services: Turn-key project integration, custom bottle mold manufacturing, export documentation, and global technical support.
| filling volume | 8-200ml(can be customized) |
|---|---|
| production speed | 40-50b/min |
| connect material | SUS316L |
| plc and touch screen | siemens |
| pump size | FEA 13 15 17 19 20 SELECTED |
| collar size | FEA 13 15 17 19 20 SELECTED |
| cap size | any size |
| machine size | 8500*2000*1800mm |
Perfume chiller mixing machine
Sealed pneumatic mixing tank
automatic single head perfume filling machine
automatic double heads perfume filling machine
explosion proof perfume mixing machine

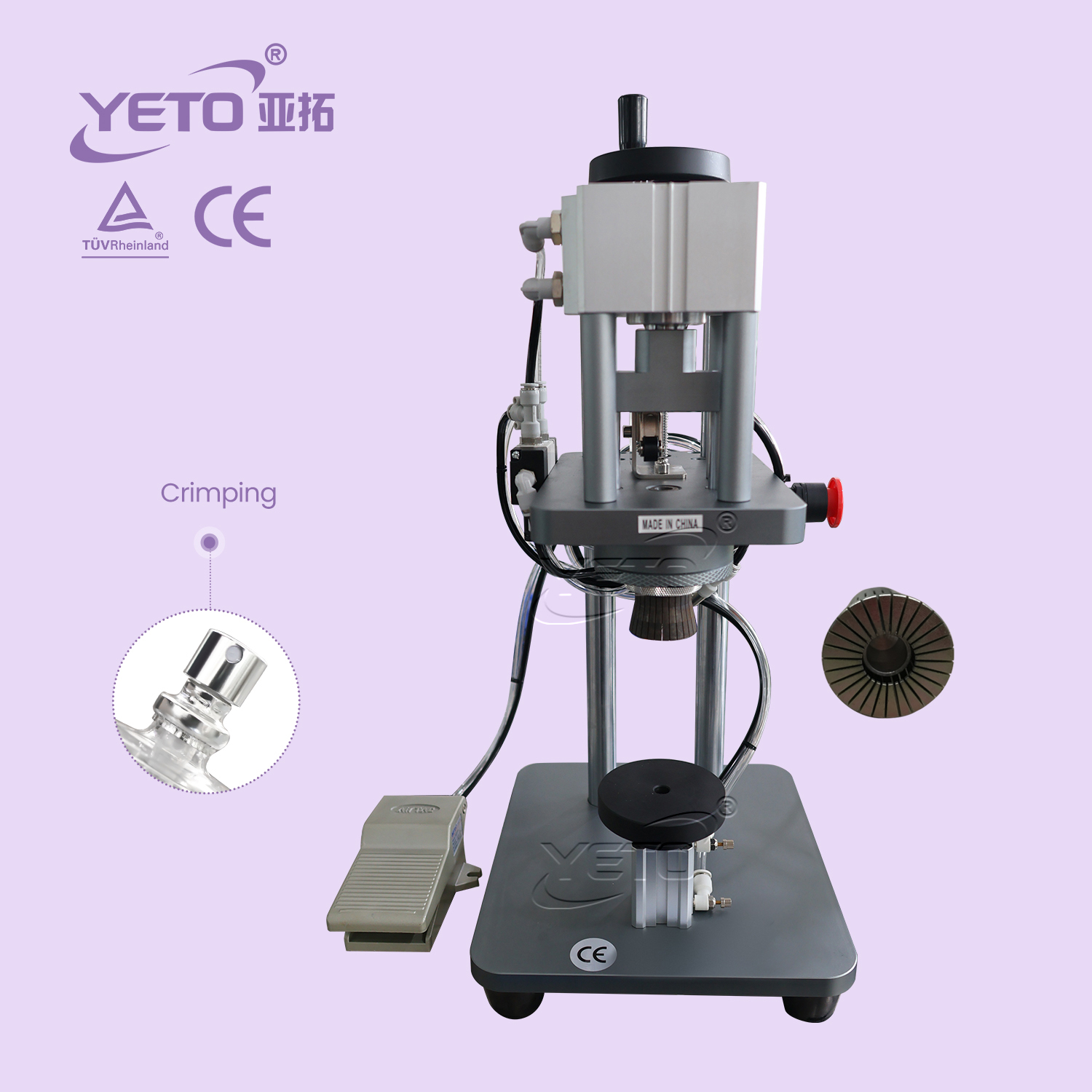

Pneumatic crimping machine

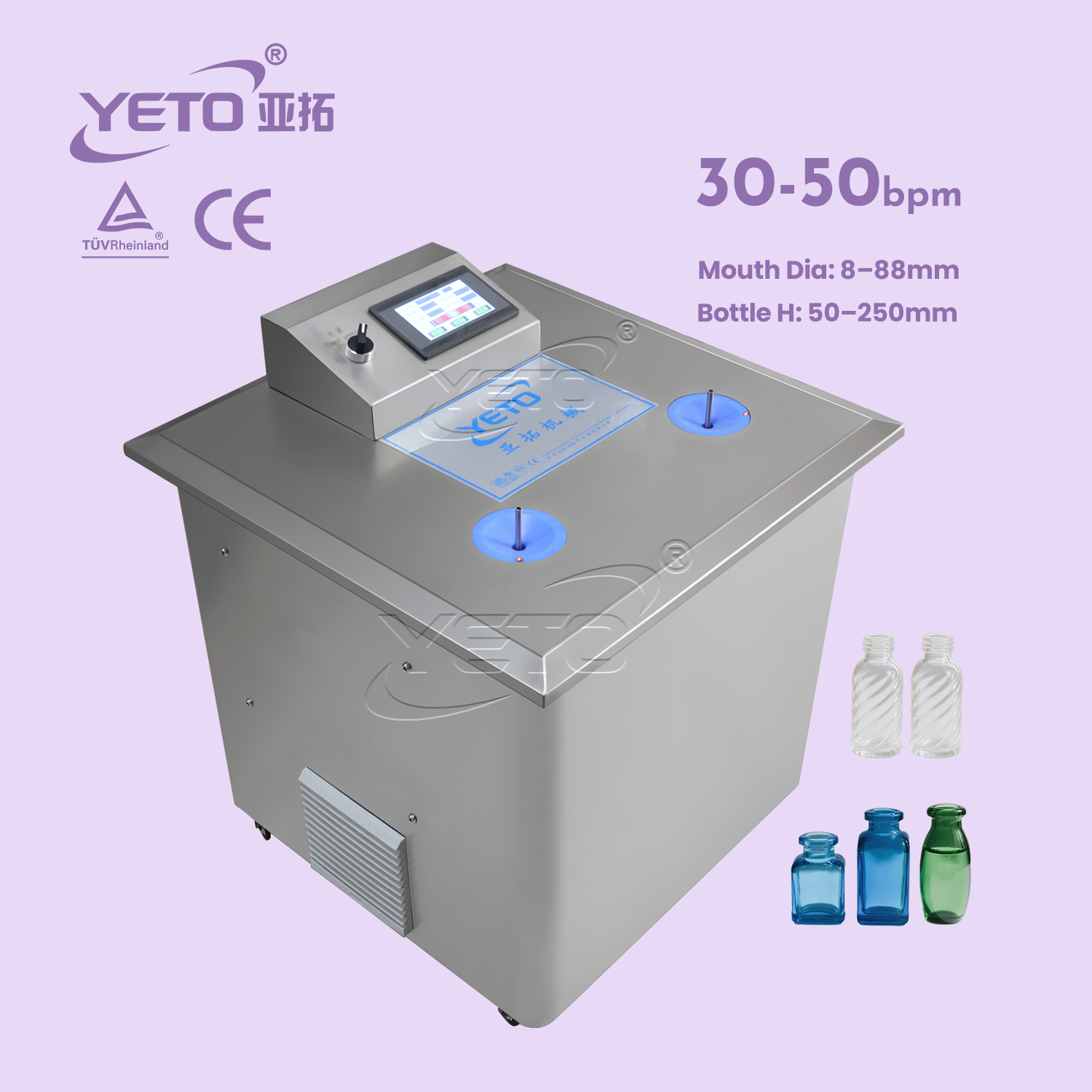

Perfume bottle cleaning machine

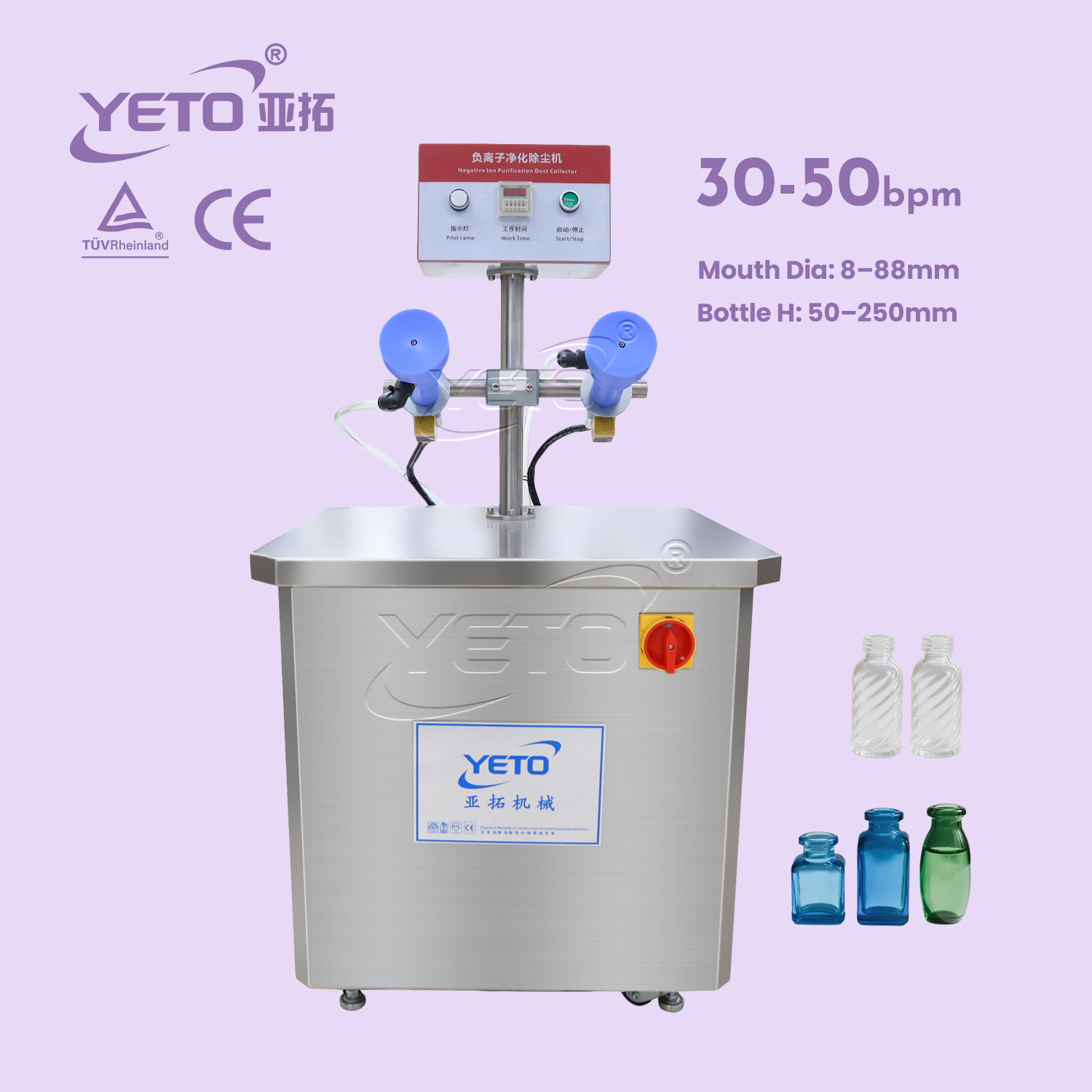

Negative glass bottle air cleaning machine
pipe cutting machine

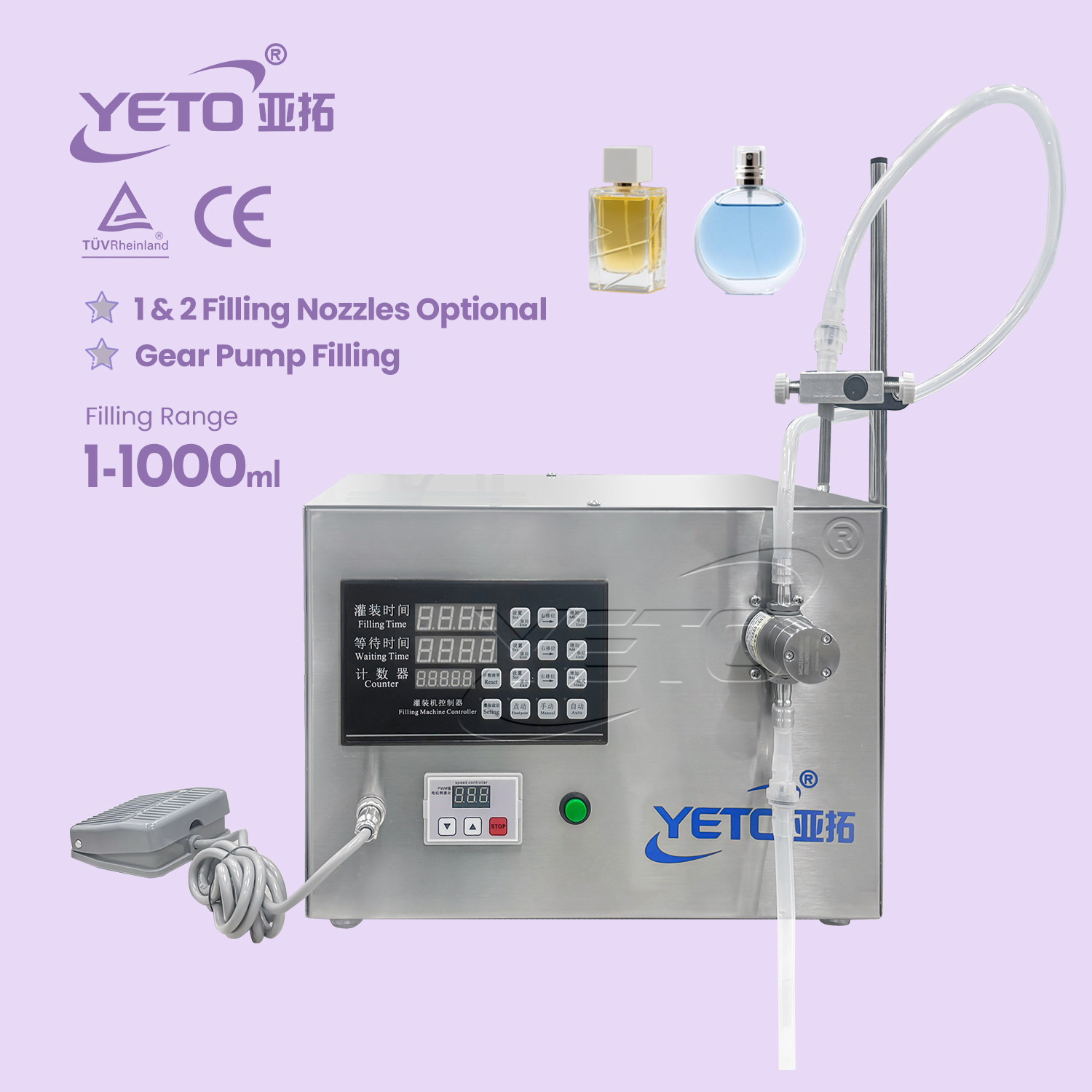

single head liquid filling machine
